Character Editor

June 2026 - July 2026 - Personal Project

GitHub Repo: https://github.com/Callum-OP/Character-Editor

Three.js, FastAPI, Python, Blender, JavaScript, HTML, CSS

A web-based toolkit for preparing 3D characters and meshes. It acts as a hub linking to a growing set of individual tools, with a Three.js and model-viewer frontend backed by a FastAPI server that drives Blender headless to process models.

Supports common 3D formats including OBJ, FBX, glTF/GLB, PLY and STL, so models can be prepared and moved between other tools.

Features:

• Auto Quad Topology – converts models into clean quad, quad-dominant or triangle topology using QuadriFlow, with optional hard mirror symmetry.
• Shape Match (Wrap) – conforms a model's vertices to a reference shape using BVH projection without changing your topology, keeping features and shape keys intact.

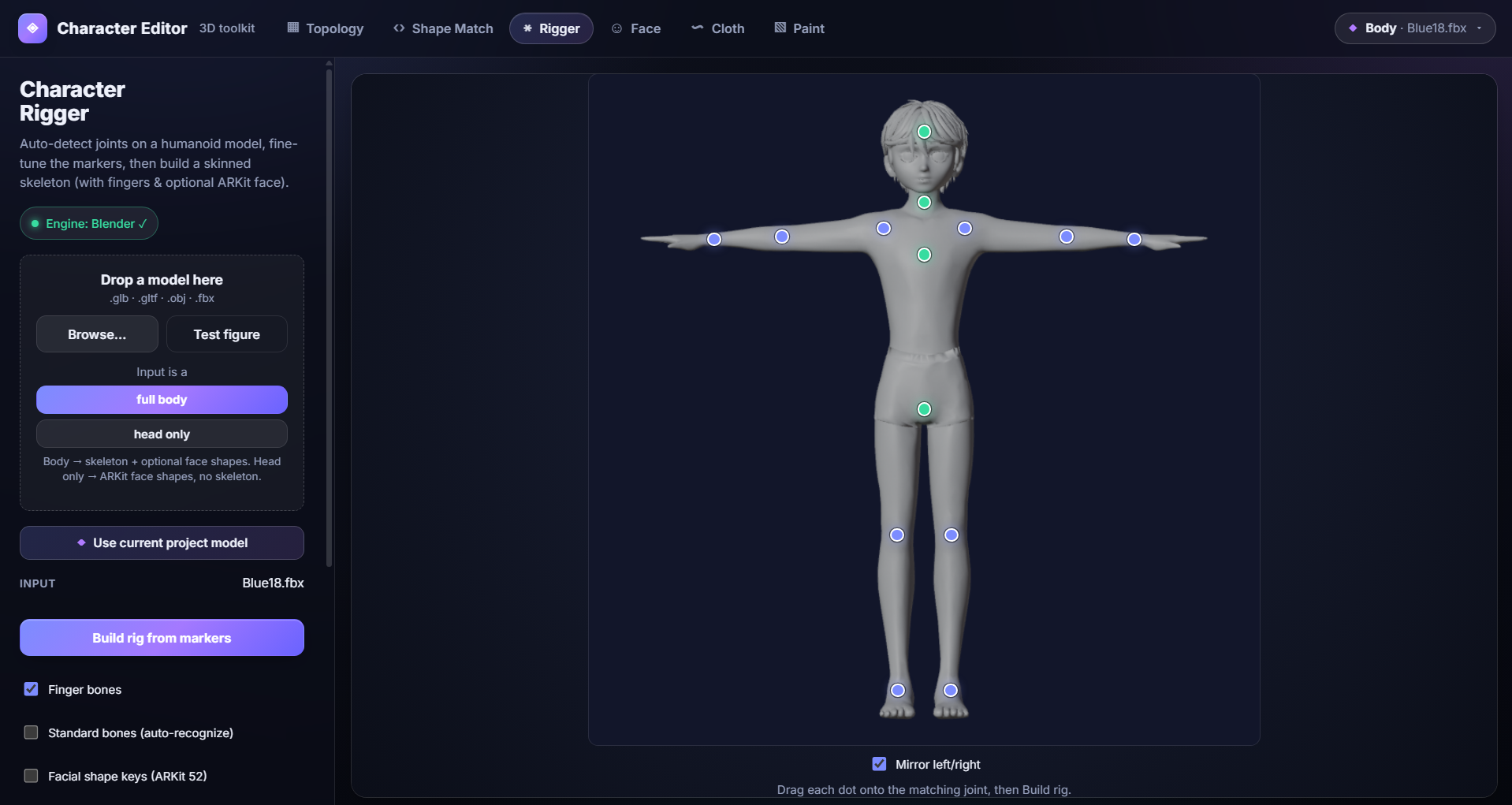

• Character Rigger – auto-detects joints on a humanoid model, lets you tweak the markers, and builds a skinned Mixamo-style skeleton with fingers and an optional ARKit face.

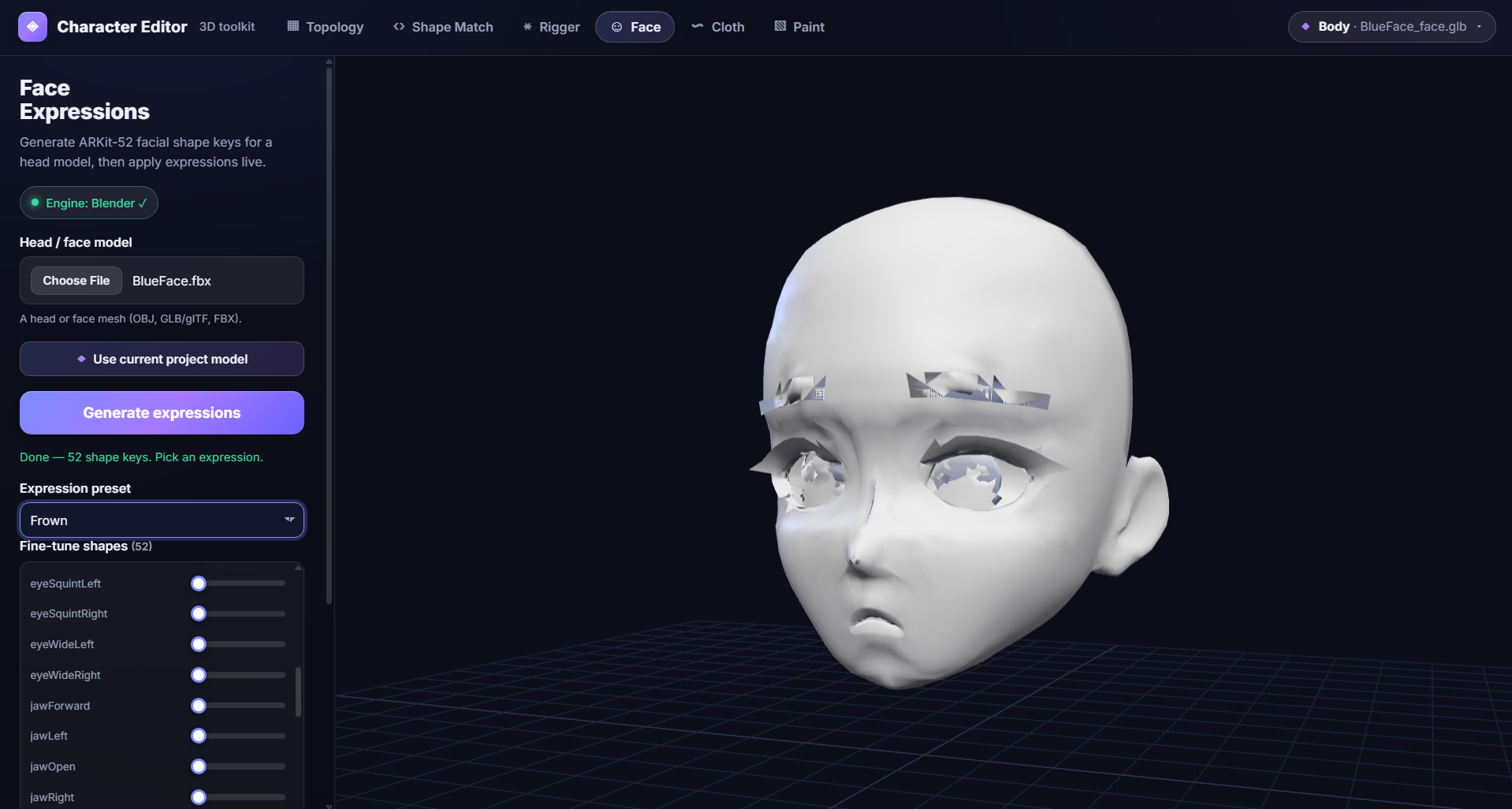

• Face Expressions – generates the 52 ARKit facial shape keys for a head model, then applies expressions such as smile, surprise and blink live before downloading the shape-keyed model.

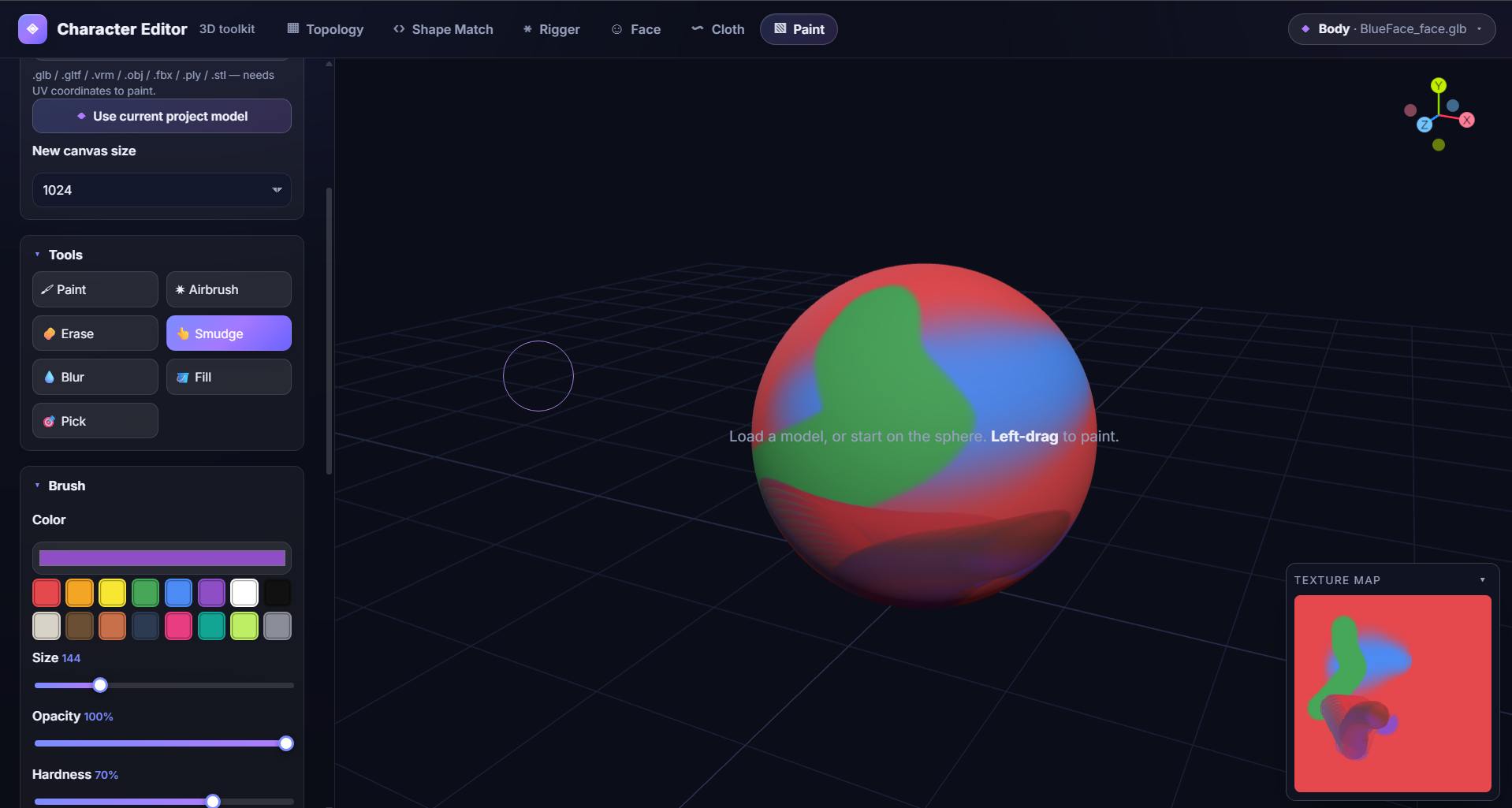

• Paint Studio – a layered painting studio with blend modes, per-layer opacity and visibility, plus an advanced brush set (paint, airbrush, eraser, smudge, blur, bucket fill, eyedropper) and mirror symmetry, running entirely client-side with Three.js.

Screenshots of the site:
